Tohnichi Rotary Slip Preset Torque Screwdriver RNTD30CN

Tohnichi Rotary Slip Preset Torque Screwdriver RNTD30CN

  • 13420

Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.


Tohnichi Rotary Slip Preset Torque Screwdriver RNTD30CN

  • Preset Version of RTD
  • No External Scale, Torque Value Set Using Tester
  • Screwdriver reaches torque setting then "clicks" and ratchets without applying more torque.



Model No. RNTD30CN
Torque Range
Min.-Max.
S.I.
cN-m
10 - 30
Metric
kgf-cm
1 - 3
American
in. oz
in. lbf
15 - 40
1 - 2.5
Dimensions (mm)
Overall Length
L' 95
Grip Dia.
D1 19.5
Body
D4 11
L1 24
L2 59
d -
R -
Weight Approx.
Grams 70
Oz. 2.47



Note:

1. A torque driver tester and adjusting key are necessary to set torque. A torque setting service is available at time of order for a nominal fee.

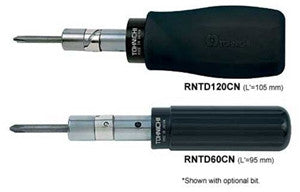

2. For RNTD120CN, 260CN, black resin grip is supplied as standard accessory.
3. Accepts standard bit, 6.35 (1/4) HEX root shape
