Ingersoll Rand 460 Series Palm Button Control Valve PN 461-4
APPLICATION INFORMATION
- Valves are 2-position, 3-way, manually actuated with spring return. Each valve can be plumbed to perform “normally open,” “normally closed,” “selector,” or any 2-way function.
- Use as operator controls to START tools or START cycle, or to EMERGENCY RETRACT tools, etc.
- Available in 1/8" NPT(F) ports and with 5/32" instant tube fittings.
- Equipped with 2 1/2" (63.5 mm) buttons in four colors.

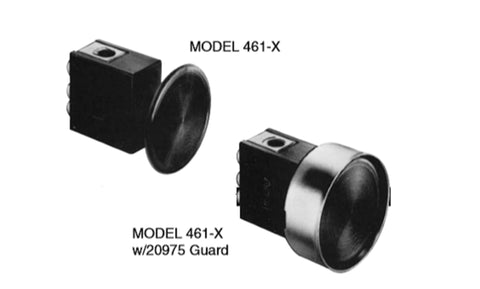

- Design permits panel or side mounting.
- Optional full guard available.
| VALVE MODEL
1/8" NPT(F) Ports with Instant Tube Fittings |
461-4 | |
|---|---|---|
| BUTTON COLOR | Yellow | |
| OPERATING PRESSURE | 30 to 150 PSIG (2.1 to 10.4 bar) | |
| TEMPERATURE RANGE | 32° to 160°F (0° to 71°C) | |
| FLOW CAPACITY |
4.0 SCFM (1.9 dm3/s) with instant tube fittings; 7.5 SCFM (3.6 dm3/s) with 1/8" NPT(F) ports. |
|
| ACTUATING FORCE | 4 Ibs. (17.8 N) at 100 PSIG (7 bar) inlet. | |
