Desoutter SCP043-T1100-S4Q Pneumatic Screwdriver Shut Off Pistol Grip Trigger Start

Desoutter SCP043-T1100-S4Q Pneumatic Screwdriver Shut Off Pistol Grip Trigger Start


Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.




CONTACT US FOR BEST PRICE

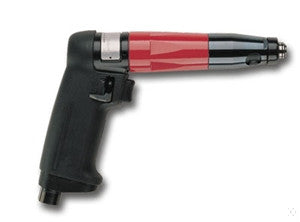

Desoutter SCP043-T1100-S4Q trigger start pistol grip pneumatic screwdriver uses a externally adjustable spring clutch mechanism that allows for precise and repeatable torque on both hard and soft joints.  High tolerance machined components make this model a leader in assembly production in the aerospace, automotive, plastics, and electronics industries for light torque high cycle applications. Desoutter Pneumatic screwdrivers

PN 1456754

Part number 1456754
Model SCP043-T1100-S4Q
Output drive 1/4" Hex." "F"
Free speed 1100 rpm
Torque range 0.4-4.3 Nm 3.5-38.1 in.lbs
Torque range 3.5-38.1 in.lbs 0.4-4.3
Fitted spring 0.9-4.3 Nm  7.9-38 in.lbs
Fitted spring 8.0-38.0 in.lbs 0.9-4.3
Operation Trigger start
Weight 0.86 kg 1.89 lb
Weight 1.89 lb 0.86 kg
Length 228 mm 9"
Length 9" 228 mm
Air inlet thread size 1/8 in.
Air inlet thread size 1/8 BSP
Min. hose size 6 mm 1/4"
Min. hose size 1/4" 6 mm
Actual air consumption 6.5 l/s 13.8 cfm
Actual air consumption 13.8 cfm
Noise level 73 db(A)
Vibration (ISO-8662-7) <2.5 m/s²
