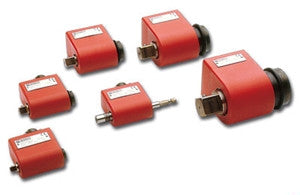

Desoutter Rotary Transducers DRT 5 Sq 20, 1/4in Sq. (P/N 6151652210)

Desoutter Rotary Transducers DRT 5 Sq 20, 1/4in Sq. (P/N 6151652210)


Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.


CONTACT US FOR BEST PRICE



The DRT5 (torque and angle) transducers cover a torque range from 0.15 to 1400Nm (0.11 to 1032ft.lbs). DRT5 transducers offer an angle resolution down to 0.5 degrees. The built-in memory provides all transducer calibation data to Sigma and Delta data collectors.



Features:
  • Torque range from 0.15 to 1400 Nm (0.1 1 to 1032 ft.lb).
  • Angle counting system 0.5° resolution
  • Strain gauges transducer sensitivity 2mV/V .accuracy +/-0.35% full scale.
  • Built-in smart chip memory with: Calibration features: type of transducer – sensitivity nominal load – serial number



Part number 6151652210
Model DRT 5 Sq 20
Torque range 1.5-20 Nm 1.11-14.7 ft.lbs
Torque range 1.11-14.7 ft.lbs 1.5-20
Output drive 1/4"



Measurement systems accessories (3)
Part number   Description Price
6159174300   Digital Push pull <-> 12 pins All types of Sigma & Delta DRT / DWT / DST 2m (78.7") long  $461.00

6159174320   Digital Push pull <-> 12 pins All types of Sigma & Delta DRT / DWT / DST 2m (78.7") long, spiral  $796.00

6159174330   Digital Push pull <-> 12 pins All types of Sigma & Delta DRT / DWT / DST 5m  $548.00
