ATP 356HSL-60-6 Horizontal Grinder 3 HP (PN ATP 356HSL-60-6)

ATP 356HSL-60-6 Horizontal Grinder 3 HP (PN ATP 356HSL-60-6)

  • 67436

Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.

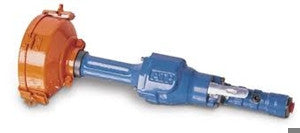

ATP Grinder 356HSL-60-6 Horizontal Grinder


Part Number ATP 356HSL-60-6
Free Speed (rpm) 6,000
Power 3 hp 2.2 kw
Spindle Thread 5/8"-11
Wheel Max Capacity 6"
Weight Less Guard 10.5 lbs 4.8 kgs
Height to Bottom of Flange 20.125" 524 mm
Side to Center Distance 1.25" 32 mm

Notes:


  • Wheel type straight or wire brush
  • Air inlet 1/2" npt
  • Minimum hose size 1/2" 13mm

All HSL models include:

  • Safety Lock-off Lever Throttle
  • Wheel Flange (2") and Spindle Nut
  • Wheel Guard (as specified by model)
  • Spindle Wrench 1100-200 (2")
  • 1102-015 (5/32") Allen Type Wrench

Extra Cost Equipment:

  • Spindle/Wheel Retention Screw
  • Retention Screw Collar 650-60
  • Optional wheel guards
Thor Products Made in USA
