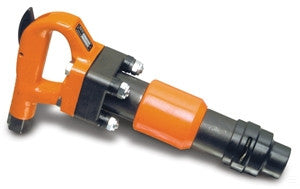

ATP 2LRHB Hammer Heavy Duty Long Reach (PN ATP 2LRHB)

ATP 2LRHB Hammer Heavy Duty Long Reach (PN ATP 2LRHB)

  • 53900

Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.


ATP - Air Chipping Hammers

ATP air hammers and chipping hammers are economically advanced in design, with a "HEAVY DUTY" alloy aluminum handle. ATP's air chipping hammer's crisp smooth valve operation produces extra hard hitting power, while our heat treated alloy steel cylinder and piston provide long life. Available in the popular 2"-3"-4" stroke versions with either Hex or Round chisel bushing and in either Alloy Aluminum or Steel Handle. Favored by contractors and Industrial users alike, this new ATP Chipping hammer sets new standards for American made pneumatic tools. ATP Chippers are Ergonomically Advanced in Design, the Ergonomic Closed Grip Handle locates the operator's hand and arm in-line with the chisel for maximum effectiveness and operator comfort. This makes the ATP Chipper easier to handle and more comfortable when used over long periods of time.


Standard Equipment

  • Oval Collar Retainer P/N 250012-525
  • Spring P/N 250012-529

Optional Equipment:

  • Nozzle Brushing Removal Tool P/N 3CH-931
  • Exhaust Deflector Extension Tool P/N 3CH-932
  • 1/2" Hose Barb Swivel Assembly P/N 3CH-A165 (3/8" NPT)
  • 1/2" Hose Barb Swivel Assembly P/N 3CH-3388 (7/8" x 24)
  • Long Reach Handle Conversion Kit P/N LCH-1A
  • 1/2" Hose Barb Inlet P/N 3CH-46


Thor Products Made in USA



Part Number/Model ATP  2LRHB
Beats Per Minute (BPM) 2300
Bore x Stroke (Inches) 1.125" x 3"
Power 3.89 hp 2900 W
Type of tool Pmeumatic Hammer
Chisel Bushing .580 Hex
Wheel max. capacity 6" 150 mm
Weight (Steel) 24.1 lbs
Diameter 6" 150 mm
Length Less Retainer 50"
Weight 9.7 lb 4.4 kg
Air Inlet 1/2" NPT
Length - -
Air Consumption  26 cfm
Height 7.48" 190 mm
Min. hose size 5/8 15
