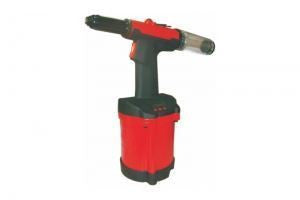

Zipp 1/4" Air Hydraulic Riveter Model #ZT2318

Zipp 1/4" Air Hydraulic Riveter Model #ZT2318

  • 64665

Want to request a quote? First add this item to your cart, then select "Request a Quote" in the cart window.


Zipp 1/4" Air Hydraulic Riveter Model number ZT2318

FEATURES:

  • Max. 1/4"(6.4mm) blind rivets in all materials
  • DO NOT apply air pressure over 110 psi / 7.5 bar to these tools
  • Features with the most advanced patented digital module to enable operators know the rivet tool setting capacity instantly under various air supply condition and the rivet setting cycles performed during their working period.
  • It will also remind operators when to do service or maintenance to the tool in proper interval.
  • It will help to cease the controversy about warranty issue especially if the tool has been misused or abused with abnormal high air pressure which exceeds the design specification.
  • Built with patented "Module units assembled in composite clam shell housing" for the ease of tool service.
  • Patented "Broken mandrel vacuum collection system" for the cleanliness and safety of work area.
  • Forged and heat treated aluminum alloy made Hydraulic Section for the best rigidity.
  • Easy adjustable Head & Nut designed for obtaining the most effective stroke.
  • Ergonomic texture coated composite housing for operator's comfort.
  • Swivel air inlet design for maneuverability works.
TRACTION POWER 5,000 Ibf 2,300 kgf
STROKE LENGTH 45/64" 18 mm
WEIGHT 5.6 lbs 2.5 kgs
OPERATING AIR PRESSURE 90 psi 6.2 bar
AIR INLET SIZE 1/4" NPT/PT
MINIMUM HOSE SIZE 3/8" 10 mm
NOSEPIECES EQUIPPED 3/16,& 1/4 4.8,& 6.4 mm
MONOBOLTS 3/16,& 1/4" 4.8,& 6.4 mm
